LS110.JS 2448150100301 PoE (2x)

Backup Source 280 W .

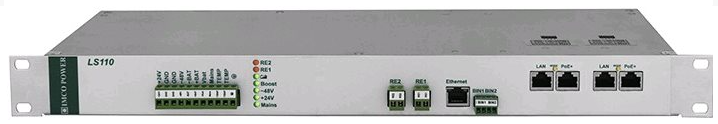

The LEDs on the front panel signal the status of the network, output voltages, fast charging, battery status, closing status of each relay and POE adjustment standard. Remote signaling indicates a power failure and a battery capacity decrease in 50#i6per#. The SNMP adapter with its own web starts allows you to control 2 independent relays that are programmed as Watchdog IP addresses with automatic restart or can be controlled manually. It is also possible to monitor 2 external binary conditions. The remotely carried out capacity battery test gives information and status and time of backup of the whole system with a real load.

The source is designed for installation to the 19"frame . Input connection is disconnected on the back of the power supply. Connecting the outputs of the source, relay, battery and signaling is through removable connectors with a cross-section of the wires up to 2.5 mm2 on the front panel of the source as well Removable connector on the back of the source. Setting individual POE modes is at the top using short-circuit jumpers. It is possible to set modes A, B or A+B with a transfer rate always 1 Gbps. LAN and POE output is protected by overvoltage protection.
A, B, A+B-POE: 2x 1 Gbps
Electric safety standards: STN EN 60950, EMC-STN EN 61000-3-2, STN EN 55022


Package content: Source, network cable (for rack), power cord for device with upward voltage 100-230V ~ 50/60Hz (in case of sources with this option)
