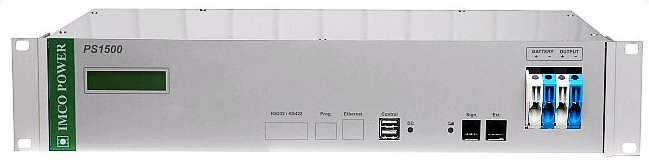

IMCO POWER PS1500.J 2450, backup power supply 24V/50A, 1380W

Name: IMCO POWER PS1500.J 2450, backup power supply 24V/50A, 1380W
Brand: IMCO POWER
SKU: 31100
Price: 1407.84 EUR
Availability: OutOfStock

Backup power 230V ~ 50Hz/27.6V (50A) 19"2U, with supervision PMVer1, the possibility of parallel shifting, rapidMore information

Producer

IMCO POWER

Part No.

EV000730

Code

00029989

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

1 163.50 EUR exc. VAT

VAT

21%

Your price inc. VAT

1 407.84 EUR inc. VAT

Ask for a better price

Description

Backup source PS1500.J 2450 in 19", used to back up the power supply 24 (27.6) in . In ~ 50 Hz. and
The source is equipped with a local indication LED , the remote signaling is via free relay contacts. In the event of a network power failure, the connected battery ensures unloading the load power . After renewing the network, the source ensures correct high-speed battery for its full capacity and subsequently maintaining it, with the surrounding temperature.

Source is designed to install in 19"frames . Connecting to the net is via moving inlet on the back, clamps and connectors for battery connection, output.

Package content: power cord, source

Parameters

Physical parameters
Battery charging current	10
DC Output Voltage (V)	27.6
DIN rail mounting	No
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED, LCD
Network interface (Mbps)	10/100/1000
Operating Temperature	25° až +50°C
Output Current	25
Rack mounting	Ano
Remote signalling	Kontakty relé, Výpadek měniče, V bat <22.9V
SNMP	No
Depth (mm)	328
Design	Rackmount
Efficiency (%)	92
Height (mm)	88
Odpojovač baterie (V)	21
Weight (kg)	5.5
Width (mm)	436
Powering
PoE	No
Power consumption (W)	720
Typ zdroje	Zálohovaný
