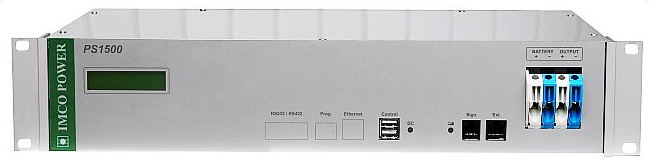

IMCO POWER PS1500.J 2425, backup power supply 24V/25A, 690W

Name: IMCO POWER PS1500.J 2425, backup power supply 24V/25A, 690W
Brand: IMCO POWER
SKU: 31099
Price: 1007.67 EUR
Availability: OutOfStock

Backup power 230V ~ 50Hz/27.6V (25A) 19"2U, with supervision PMVer1, the possibility of parallel shifting, rapidMore information

Producer

IMCO POWER

Part No.

EV000365

Code

00029988

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

832.78 EUR exc. VAT

VAT

21%

Your price inc. VAT

1 007.67 EUR inc. VAT

Ask for a better price

Description

Backup source PS1500.J 2425 in 19", used to back up 24 (27.6) V . In ~ 50 Hz.
The source is equipped with a local indication LED , the remote signaling is via free relay contacts. In the event of a network power failure, the connected battery ensures unloading the load power . After renewing the network, the source ensures correct high-speed battery for its full capacity and subsequently maintaining it, with the surrounding temperature.

Source is designed to install in 19"frames . Connecting to the net is via moving inlet on the back, clamps and connectors for battery connection, output.

Package content: power cord, source

Parameters

Physical parameters
Battery charging current	10
DC Output Voltage (V)	27.6
DIN rail mounting	No
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED, LCD
Network interface (Mbps)	10/100/1000
Operating Temperature	25° až +50°C
Output Current (A)	25
Rack mounting	Ano
Remote signalling	Kontakty relé, Výpadek měniče, V bat <22.9V
SNMP	No
Depth (mm)	196
Design	Rackmount
Efficiency (%)	92
Height (mm)	88
Odpojovač baterie (V)	21
Weight (kg)	2.8
Width (mm)	436
Powering
PoE	No
Power consumption (W)	720
Typ zdroje	Zálohovaný
