IMCO POWER LS150.JE 24481203, backup power source 24V+48V, 350W

The backup source of the LS150.Je, with an output of 350 W, is used to power and back up 12V and 48V DC devices. It has a module of converters built by the most advanced energy conversion technology, with respect to maximum efficiency.More information

Producer

IMCO POWER

Part No.

EV003058

Code

00032005

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

799.34 EUR exc. VAT

VAT

21%

Your price inc. VAT

967.20 EUR inc. VAT

Ask for a better price

Description

Backup source LS150Je 24481203 in 19" is used to back up 24 (27.6) and 48 V DC devices. The power of the module is 350 W .
In the event of a network power failure, the connected battery ensures unloading the load power . After the network recovery, the source ensures correct high-speed-the accomulator to its full capacity and then maintain it with proper voltage according to the ambient temperature. The output current from the battery (up to 41 A) allows use as a source for emergency lighting, where the battery is recharged during normal operation and the load is powered from the battery-at 24 V is 1 kW and at 48 V to 2 kW.

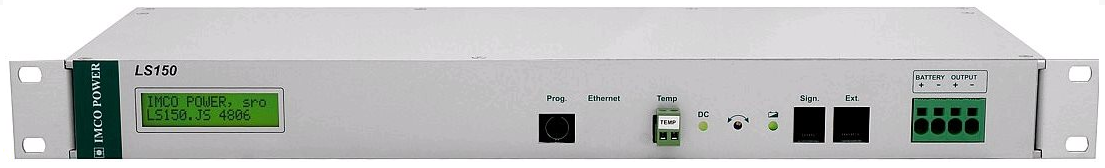

The LS150 is designed for installation to the 19 'frames . Connecting the power supply to the net is via the movable inlet from the back. Battery and output clip clips (6 mm2), signaling and overviews are on the front.

Package content: temperature sensor, source, movable supply 2 m ended with IEC 320 C13 with a cross-section of the conductor 0.75 mm2

Parameters

Physical parameters
Battery charging current	2 A, 3 A, 8 A, 12,5 A
DC Output Voltage (V)	-48, 27.6
DIN rail mounting	No
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED, LCD
Network interface (Mbps)	10/100/1000
Operating Temperature	-30° až +60°C
Output Current (A)	3, 12.5
Rack mounting	Ano
Remote signalling	Kontakty relé, Výpadek sítě, Kapacita AKU <1/2
SNMP	No
Depth (mm)	180
Design	Rackmount
Efficiency (%)	91, 93
Height (mm)	44.5
Odpojovač baterie (V)	21
Weight (kg)	1.8
Width (mm)	436
Powering
PoE	No
Power consumption (W)	350
Typ zdroje	Zálohovaný
