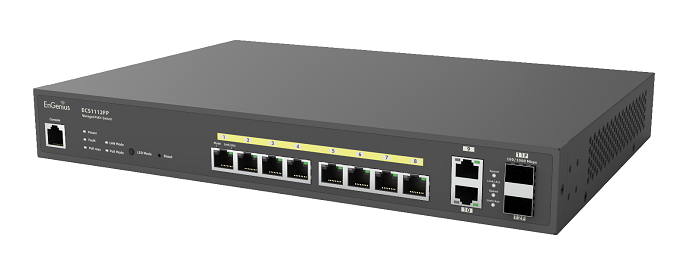

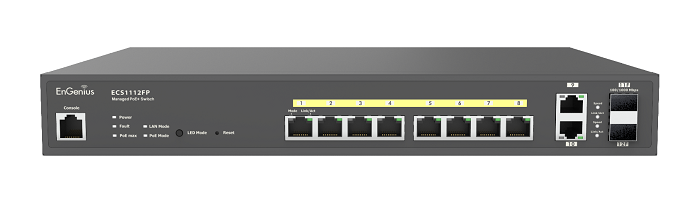

EnGenius ECS1112FP Cloud Managed PoE Switch, 8x GE port, 2x SFP/RJ45

The Enterprise Wi-Fi range and ENGENIUS Cloud Series' PoE switches provide flexible, scalable and reliable Wi-Fi for a wide range of applications. Whether you are looking for AP to cover your offices or need to provide ultra-fast Wi-Fi access in a large hotel or campus, cloud-managed ENGENIUS access points meet the requirements for high transfer speed and permeability for hundreds of attached clients.

Regardless of the current or planned network size, access points managed by cloud will meet your needs. You can only use a few APs or an unlimited number of access points in an unlimited number of networks at different locations-regardless of their size, infrastructure or physical location.



Thanks to the simple AP configuration on one click, it is possible to build the entire network and put into operation in an extremely short time. Similarly, problems and operation analysis are more efficient with a cloud solution compared to the classic local controller-artificial intelligence (AI) allows the Engenius Cloud to predict problems before they are, and provide accurate recommendations for active performance improvement.

ECS1112FP
EngeniuseCS1112FP is an 8-port Switch with central cloud administration. It is equipped with local or central configuration options, monitoring and network management and easy-to-use web interface. It powers compatible POE devices according to 802.3AF, such as IP cameras, VoIP phones and AP. Total Power Budget is 130 W.

Central Administration using Engenius Cloud or Local Administration

8x Gigabit Ethernet PoE port

2x Gigabit Combo RJ45/SFP Port

Full-Featured Layer 2 Switching

jumbo frame 9000B

Support Qos, RSTP/MSTP, LLDP, IGMP Snooping

full support VLAN, Voice Voice support

automatic network topology with other Engenius products

Lifetime Warranty

POE 802.3AF/AT with total budget POE 130 W

Desktop version



Engenius cloud

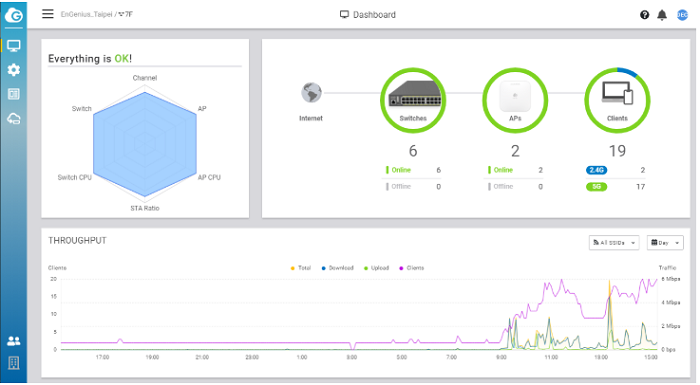

Get to know the ease of construction and the high efficiency of network management-from deployment to monitoring and solving problems with the comprehensive solution of Engenius Cloud will help you simplify the whole process. The Engenius Cloud is based on cloud computing technology-robust and dynamic cloud infrastructure, which is fully scalable from the smallest projects to the deployment of thousands of AP and ready on AI, will help you work intelligently in your network using important analytical and visualization tools.

easy management of multiple organizations and networks in one account, the possibility to sort and filter individual networks

Mass management AP and switches in one place

Quick solution to graphic and visualization tools

clear display of each client's history on Timeline

Information in real time Information about the status and performance of each individual AP and network as a whole

Automatic network topology, built-in AP coverage view on map materials

Operation analysis on 7 layer-full check over applications, use information.

Captive portal with advanced features-Social network login, automated voucher printing for temporary access, Radius support.

Mobile application Engenius Cloud-full check over Switchi, access points and devices administered cloud, wherever you are.

Possibility to remote and centrally manage fw of all devices, possibility to coordinate updates with planned maintenance

One-CLICK registration of new AP via the web or mobile app



Standards

802.3 10base-T Ethernet

802.3U 100base-TX Ethernet

802.3AB 1000base-T Ethernet

802.3x Full-Duplex Flow Control

ports

8 x 10/100/1000 Mbps port

2 x 10/100/1000 Mbps SFP/RJ45 port

switching capacity

24 Gbps

PoE power

ports 1-8

Power consumption 130 W

l3 function

Multiple IP Interface (20 IPv6 addresses)

Arp Table (192 records)

IPv4 static Route (63 records)

IPv6 static Route (21 records)


Discover the power of Engenius cloud
