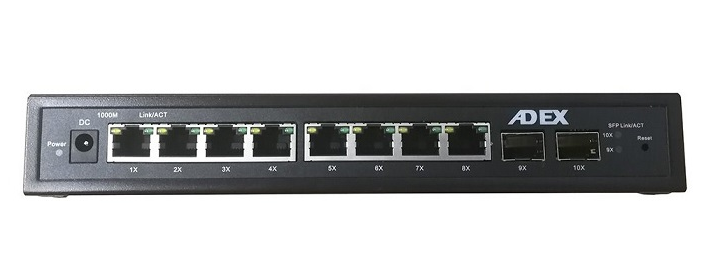

ADEX AD1000-8GPDM-2FM Reverse PoE Switch 8x Gbit Port, 2xSFP, Web Managed, Metal

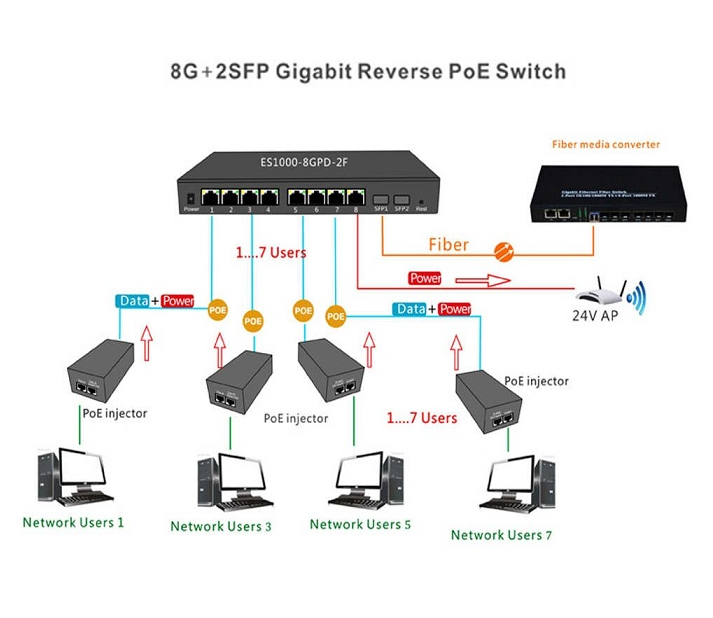

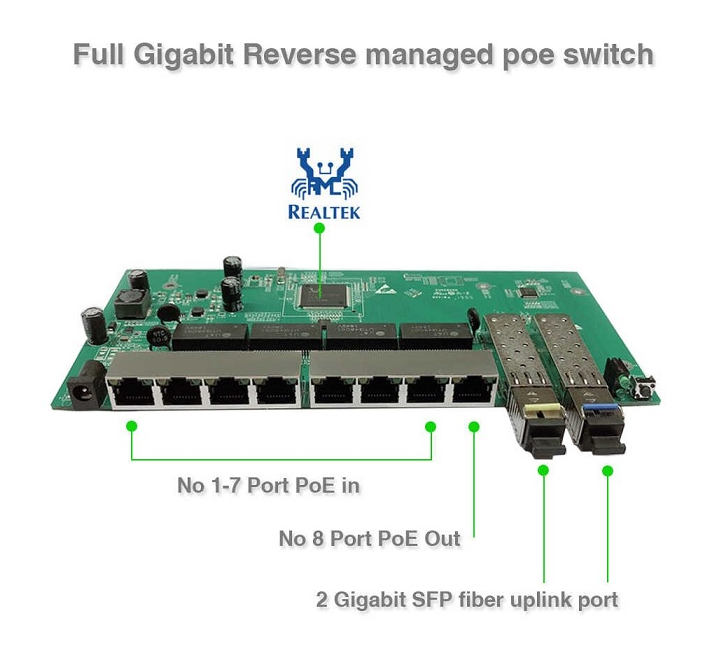

ADEX AD1000-8GPD-2FM is a manageable gigabit switch with a reverse poe in desktop in a metal body. It is equipped with eight gigabit ports, seven of which have a Poe-in function and one Poe-out, then two optical ports for SFP modules. Ports 1 to 7 do not communicate together, but all ports communicate with Port 8 (Poe Out).

Thanks to Funci Power-Overnet, ports 1 to 7 can automatically detect and receive the power supply using the IEEE 802.3AF/Compliant Powered Devices (PD). In this case, electricity is transmitted together with data in one cable. This allows you to easily expand the network in places where no drawers are available or, for example, when repairing AP. Switch facilitates power in installation in corridors or locations where cables are already in the building.

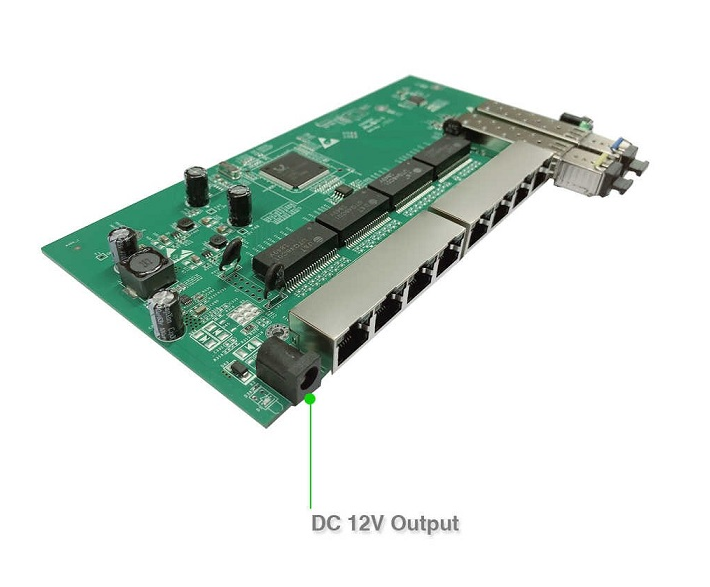

Thanks to Plug and Play, no installation or configuration is required. Up to seven ports, it is used to power the switch, which can then continue to power other devices via a passive POE or Jack connector (for example, ont units). It can be used wherever it is necessary to power one device, for example in camera systems and in installations of wireless or optical joints.

parameters

The subject is equipped with the CE match mark.
