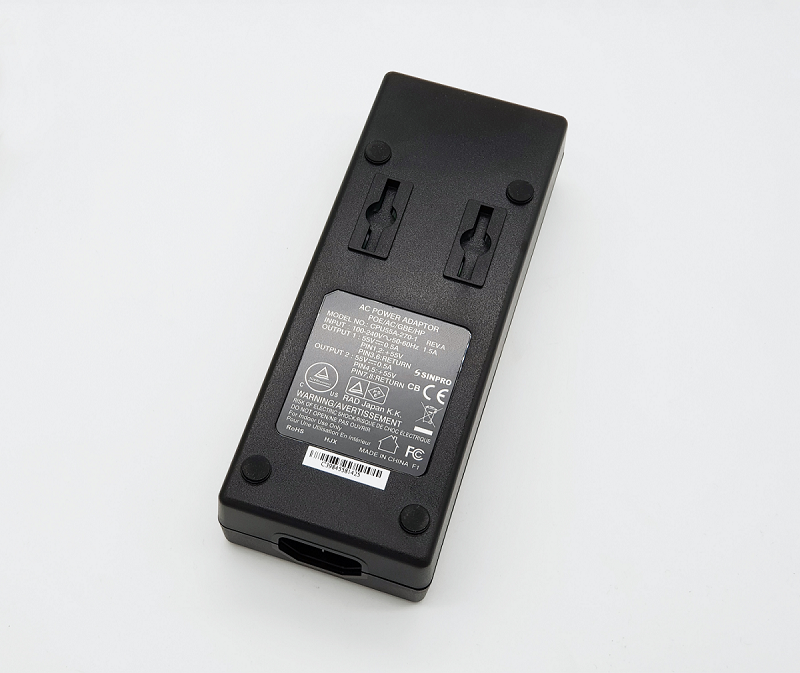

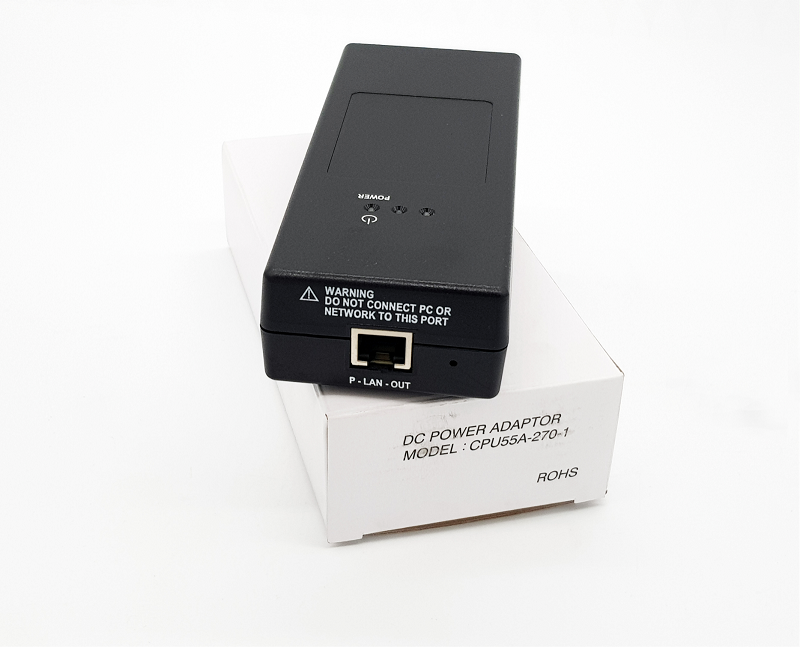

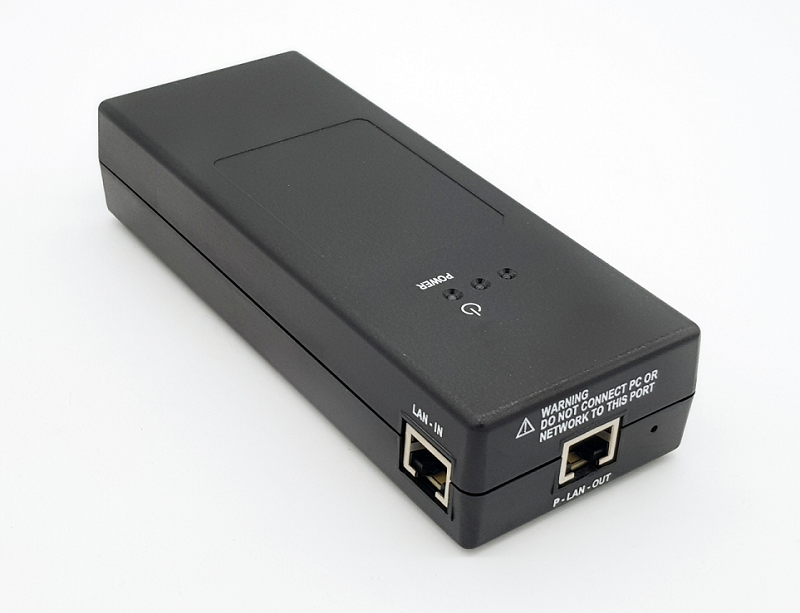

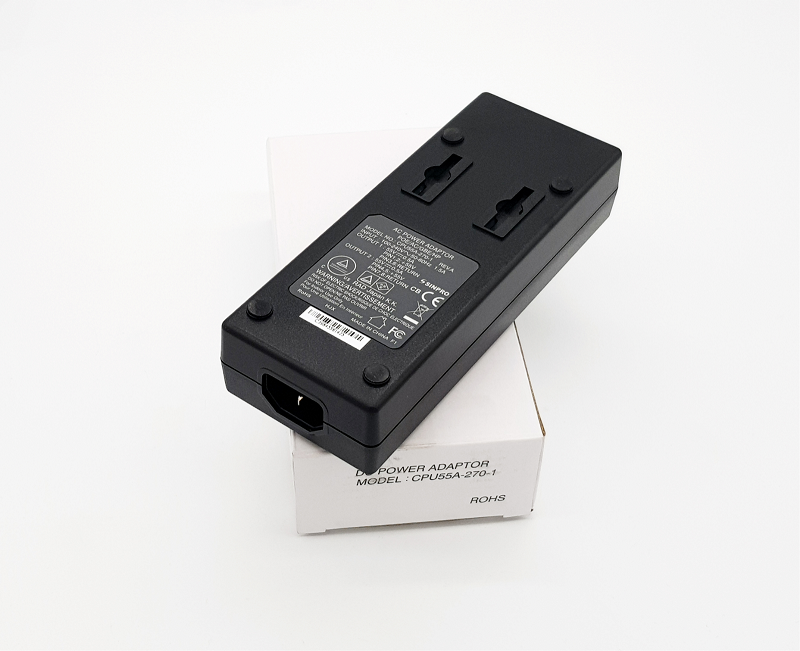

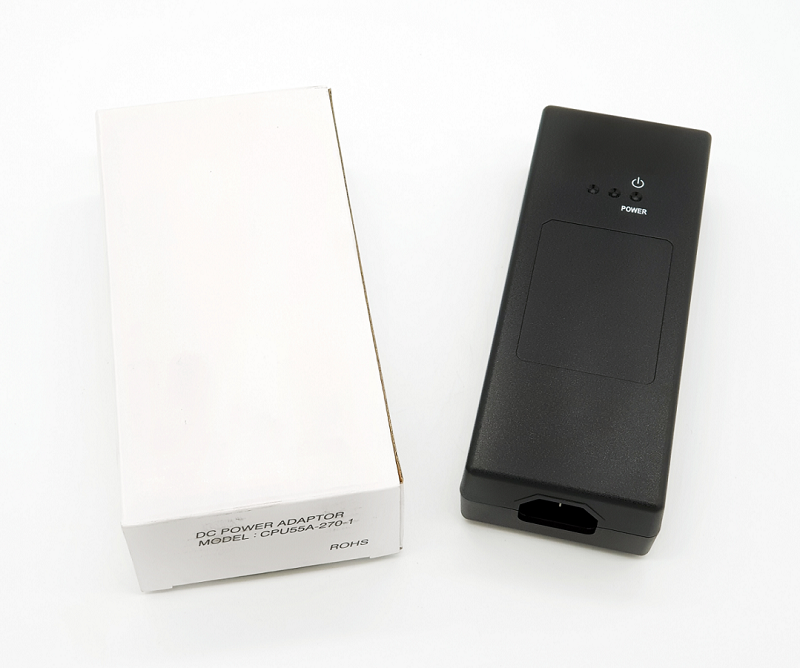

AC POE Injector indoor

Name: AC POE Injector indoor
Brand: Sinpro
SKU: 40848
Price: 29.44 EUR
Availability: InStock

Gigabit power PoE adapter, 55V passive PoE output with power up to 60 W. Suitable for all types of PtP connections with power consumption up to 60W, but also other common PoE devices such as IP cameras, etc.More information

Producer

Sinpro

Code

00034102

Warranty

24 Month

Ask for a better price

Description

Gigabit power PoE adapter with 55 V passive PoE output and power up to 60 W. Suitable for all types of PtP links with power consumption up to 60W, but also other common PoE devices such as IP cameras, etc.

Typical apps

Professional PtP and PtMP connections
Access points and related technologies
High performance IP cameras & nbsp;
Video, data / voice modems

Specifications

90 to 265 V AC (wide range)
Output voltage: 55 V DC
Output current: 1.1 A
Passive PoE power supply: Pins 1, 2, 7, 8 negative pole, pins 3, 4, 5, 6 positive pole
Efficiency: at least 85%
Protection - output protected against overload, short circuit and overvoltage
High efficiency
Wide input voltage range covering worldwide requirements
Operating temperature range -20 °C to +45 °C
Compact size - 160 x 63 x 32 mm

Parameters

Ethernet parameters
DC Output Voltage (V)	55, 48
Input Voltage (V)	230
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Output Current (A)	1.1
Output Power (W)	60
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	160
Design	Standalone
Efficiency (%)	85
Height (mm)	32
Operating Temperature	-20° až + 45°C
Width (mm)	63
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
